DIABLO 1/2 in. Radius Rounding Over Router Bit
Top-brand power tools, accessories, and hardware at up to 55% off retail.
Pickup available at Value Tools Co - Elk Grove
Usually ready in 1 hour
Model Number: DR34116

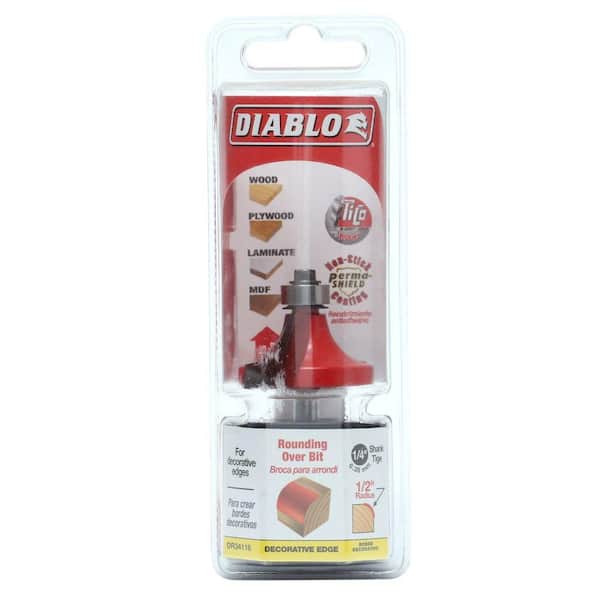

DIABLO 1/2 in. Radius Rounding Over Router Bit
DIABLO 1/2 in. Radius Rounding Over Router Bit – DR34116 / 202563344
DIABLO DR34116 1/2 in. Radius Rounding Over Router Bit is designed for creating clean, uniform curved edges on compatible woodworking materials. The bottom-bearing design follows the workpiece edge for consistent routing, while TiCo™ Hi-Density Carbide cutting edges and Perma-SHIELD® coating support smooth finishes, long cutting life, and resistance to heat, rust, and pitch buildup. The bit is suitable for compatible CNC, automatic, hand-held, and table-mounted routers. This listing is open box.
Key Features

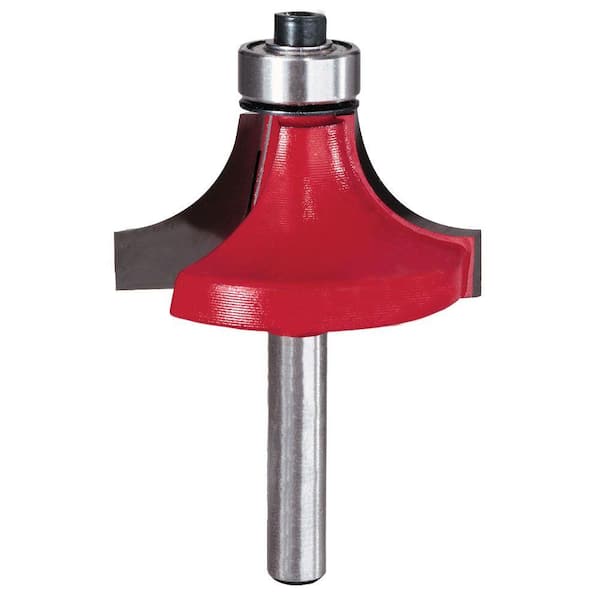

- 1/2 in. radius rounding-over profile
- Designed to create smooth, uniform curved wood edges
- TiCo™ Hi-Density Carbide cutting edges
- Perma-SHIELD® non-stick coating helps reduce heat, rust, and pitch buildup
- Bottom-bearing design guides the bit along the workpiece edge
- Suitable for plywood, hardwood, softwood, and composition materials
- Compatible with CNC, automatic, hand-held, and table-mounted routers
- 1/4 in. shank diameter
- 1-1/2 in. overall cutting diameter
- 1/2 in. bearing diameter
- 3/4 in. carbide height
- 2-1/2 in. overall length
- One router bit per package
- Model DR34116 corresponds with Internet #202563344

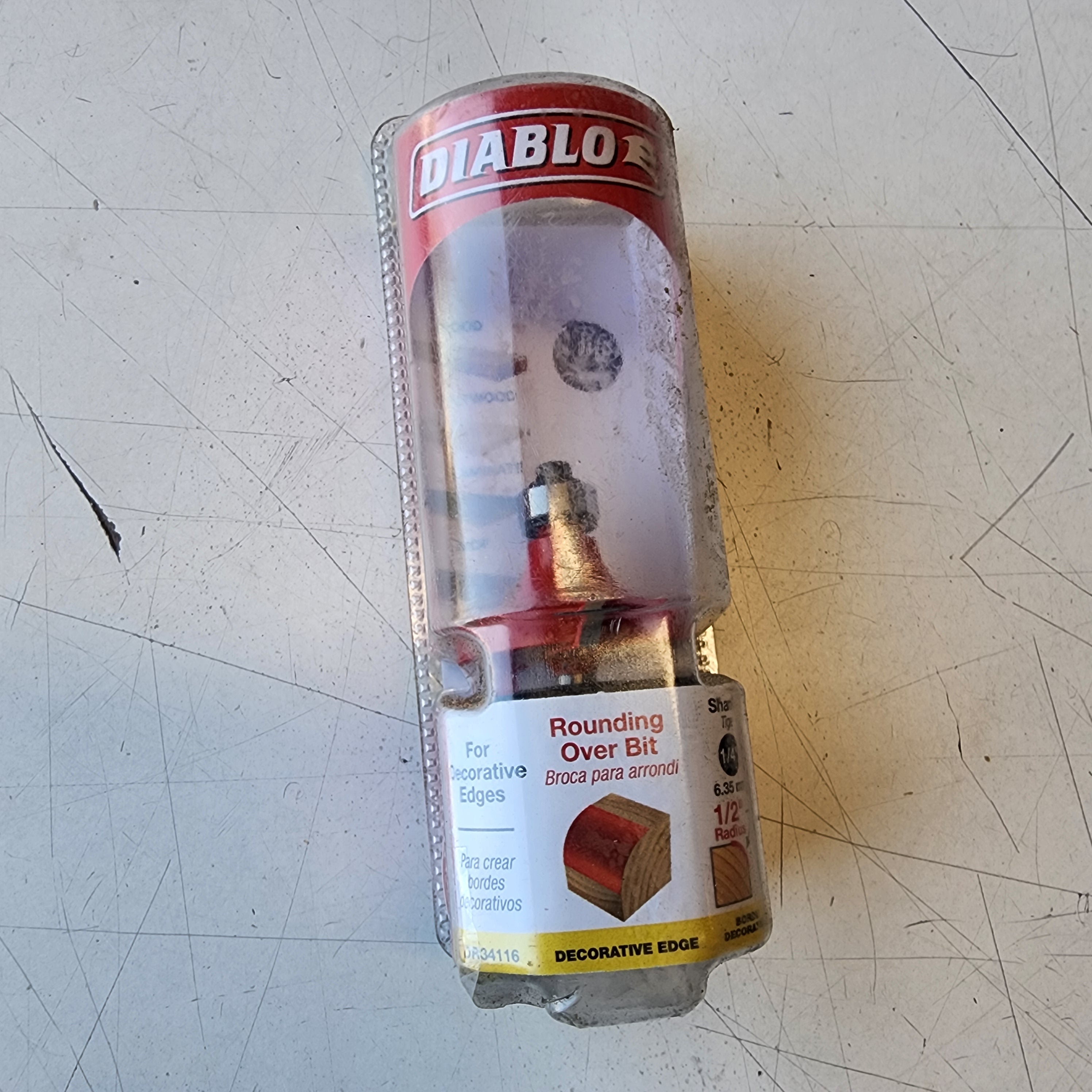

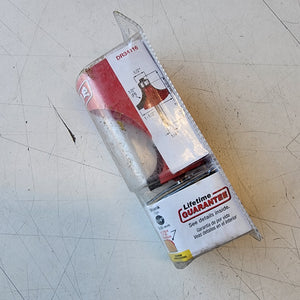

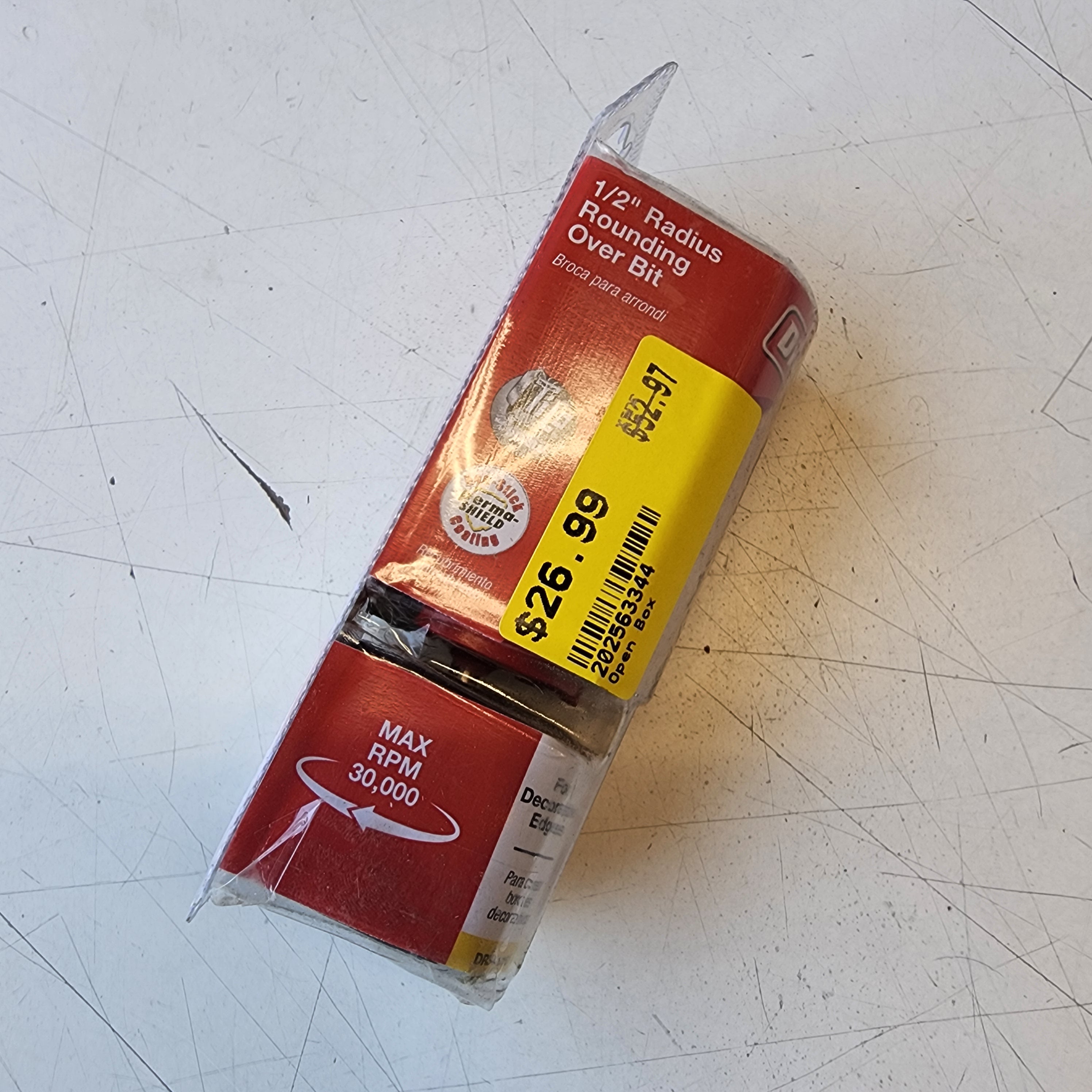

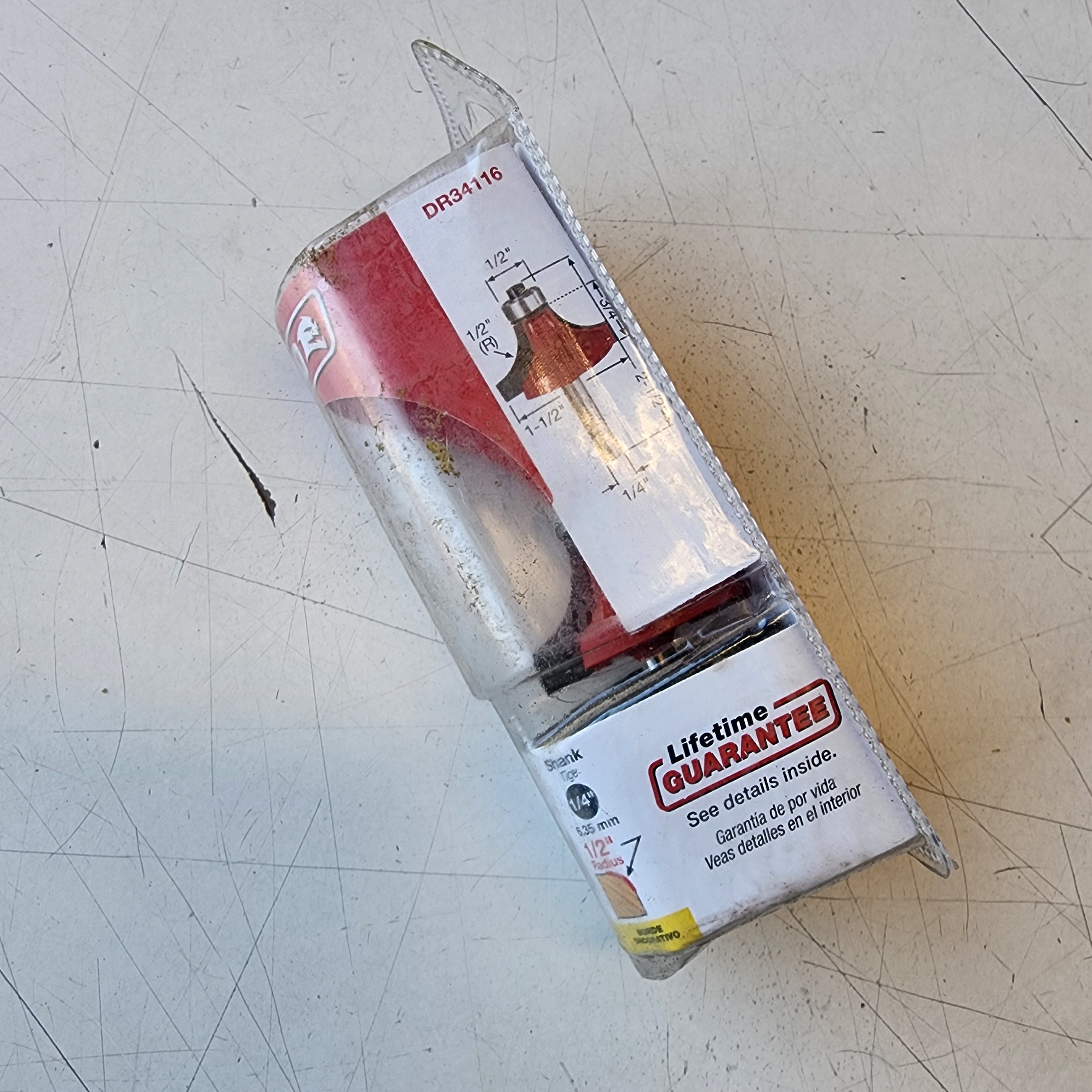

- Condition: Open Box
Specifications
| Specification | Value |
|---|---|
| Brand | DIABLO |
| Model Number | DR34116 |
| Internet Number | 202563344 |
| Store SKU | 405453 |
| Product Type | Rounding Over Router Bit |
| Condition | Open Box |
| Radius | 1/2 in. |
| Overall Diameter | 1-1/2 in. |
| Bearing Diameter | 1/2 in. |
| Carbide Height | 3/4 in. |
| Shank Diameter | 1/4 in. |
| Overall Length | 2-1/2 in. |
| Cutting Material | TiCo™ Hi-Density Carbide |
| Coating | Perma-SHIELD® Non-Stick Coating |
| Guide Type | Bottom Bearing |
| Recommended Materials | Composition Materials, Plywood, Hardwood, and Softwood |
| Router Compatibility | Compatible CNC, Automatic, Hand-Held, and Table-Mounted Routers |
| Package Quantity | 1 Piece |
| Category | Router Bits / Rounding Over Bits / Woodworking Accessories |
Ideal For
Ideal for woodworkers, cabinetmakers, furniture builders, finish carpenters, contractors, and DIY users creating larger rounded profiles on furniture, shelving, cabinetry, trim, and other compatible woodworking projects.
Important Note
Open-box condition. Packaging may show signs of opening, handling, or storage. Router is not included. The bit has a 1-1/2 in. overall diameter and a 1/4 in. shank, so confirm the router collet and base opening can safely accommodate the bit before installation. Inspect the carbide edges, bearing, and shank before use.
