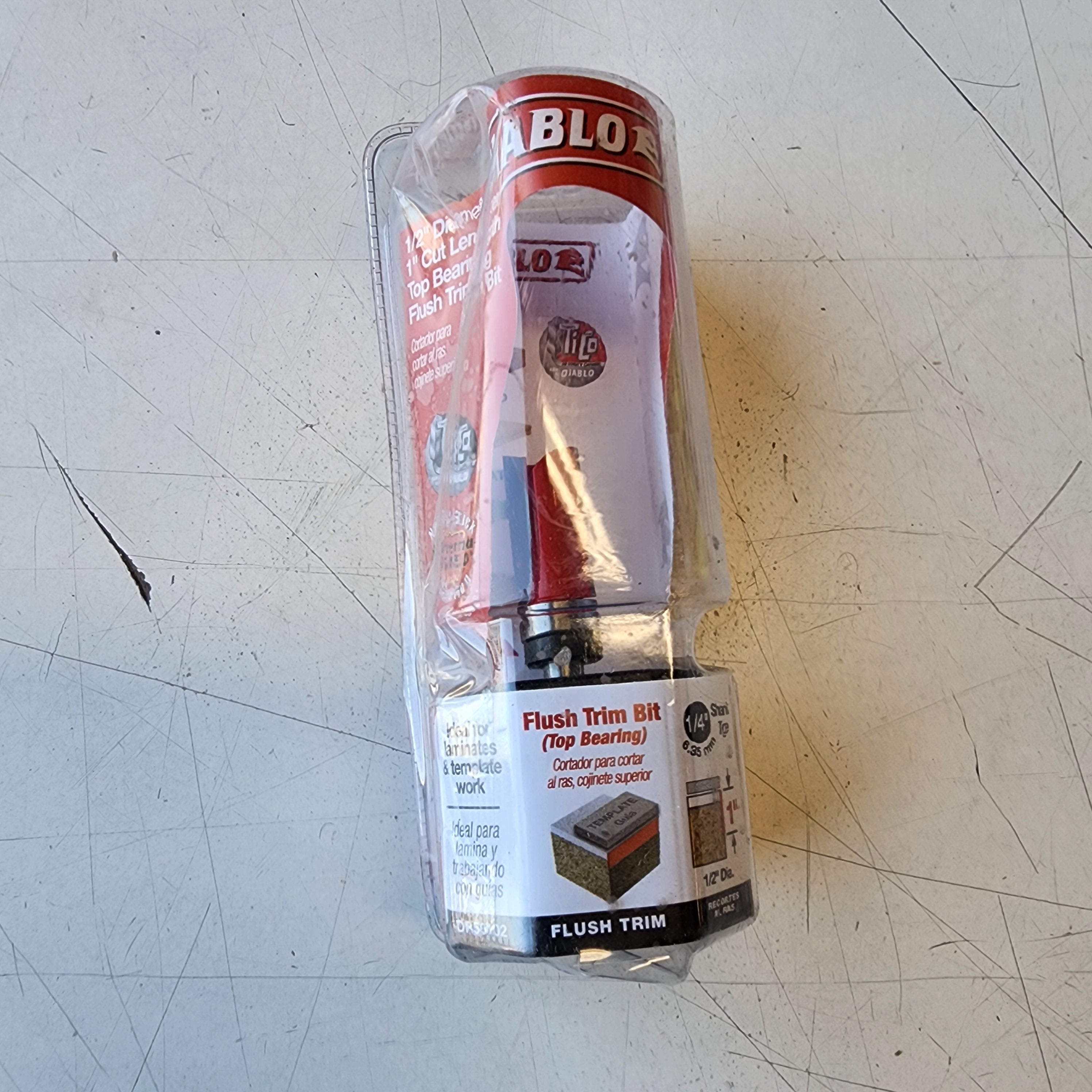

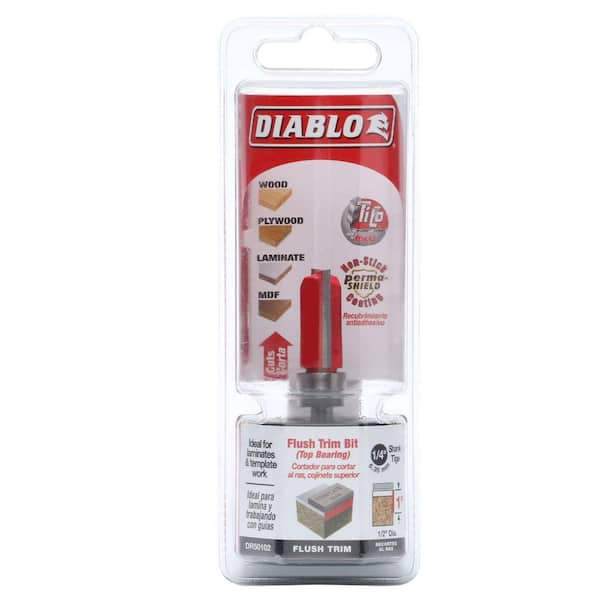

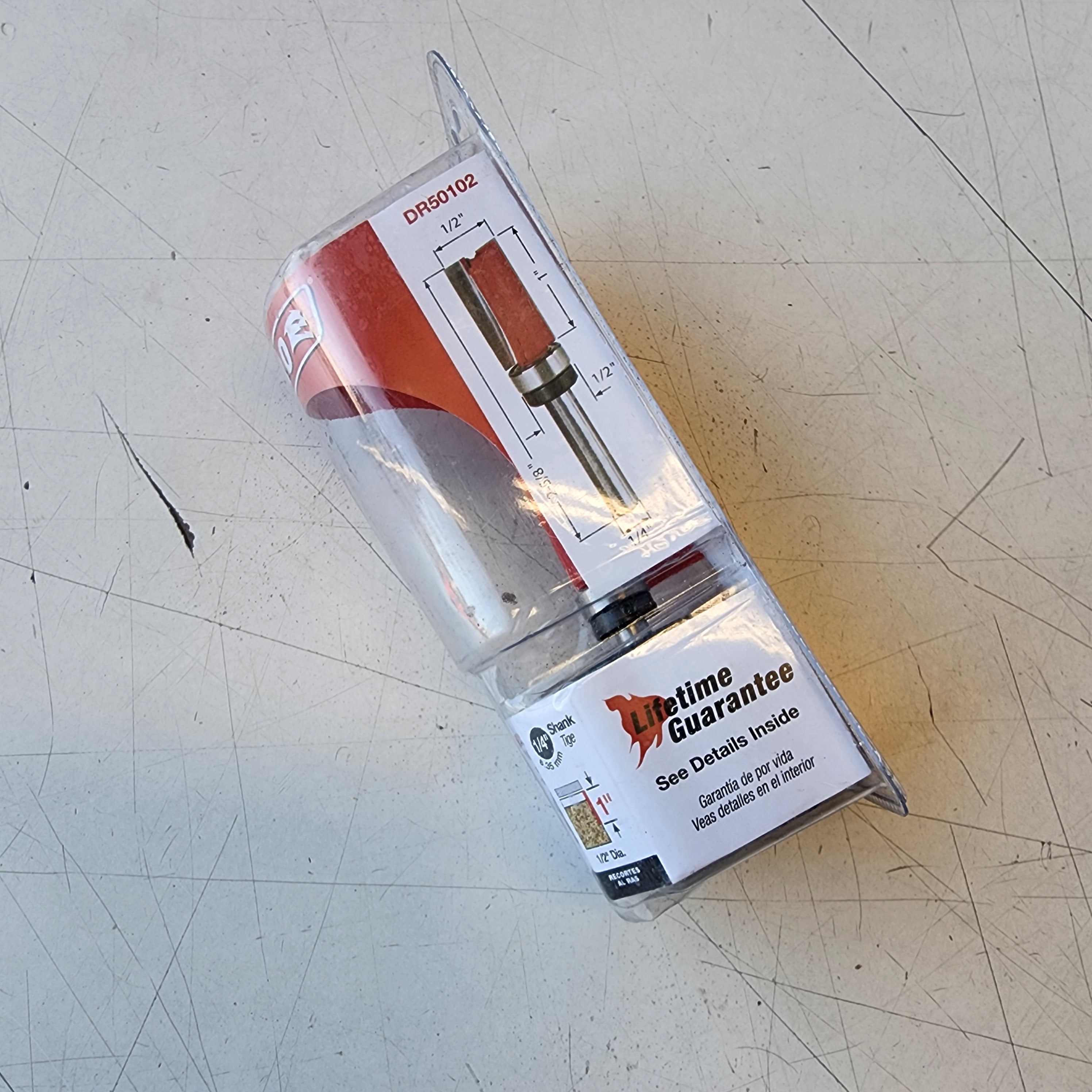

DIABLO 1/2 in. x 1 in. Carbide Top-Bearing Flush Trim Router Bit
Top-brand power tools, accessories, and hardware at up to 55% off retail.
Pickup available at Value Tools Co - Elk Grove
Usually ready in 1 hour
Model Number: DR50102
DIABLO 1/2 in. x 1 in. Carbide Top-Bearing Flush Trim Router Bit
DIABLO 1/2 in. x 1 in. Carbide Top-Bearing Flush Trim Router Bit – DR50102 / 100660681
DIABLO DR50102 Carbide Top-Bearing Flush Trim Router Bit is designed for template routing, pattern duplication, laminate trimming, and flush-trimming applications. The upper guide bearing follows a template or straight edge while the 1/2 in. cutter produces a matching cut below. TiCo™ Hi-Density Carbide, Tri-Metal Brazing, and a kickback-reducing design support clean cutting performance and durability. Suitable for compatible CNC, hand-held, and table-mounted routers. This listing is open box.
Key Features
- 1/2 in. cutting diameter
- 1 in. carbide cutting height
- Top-mounted 1/2 in. guide bearing follows templates and straight edges
- 1/4 in. shank diameter
- 2-1/2 in. overall length
- TiCo™ Hi-Density Carbide cutting edges
- Tri-Metal Brazing provides an impact-resistant bond
- Kickback-reducing design supports controlled routing
- Designed for clean flush-trimming and template-routing cuts
- Suitable for wood, plywood, melamine, MDF, laminates, and compatible materials
- Compatible with suitable CNC, hand-held, and table-mounted routers
- One router bit per package
- Model DR50102 corresponds with Internet #100660681

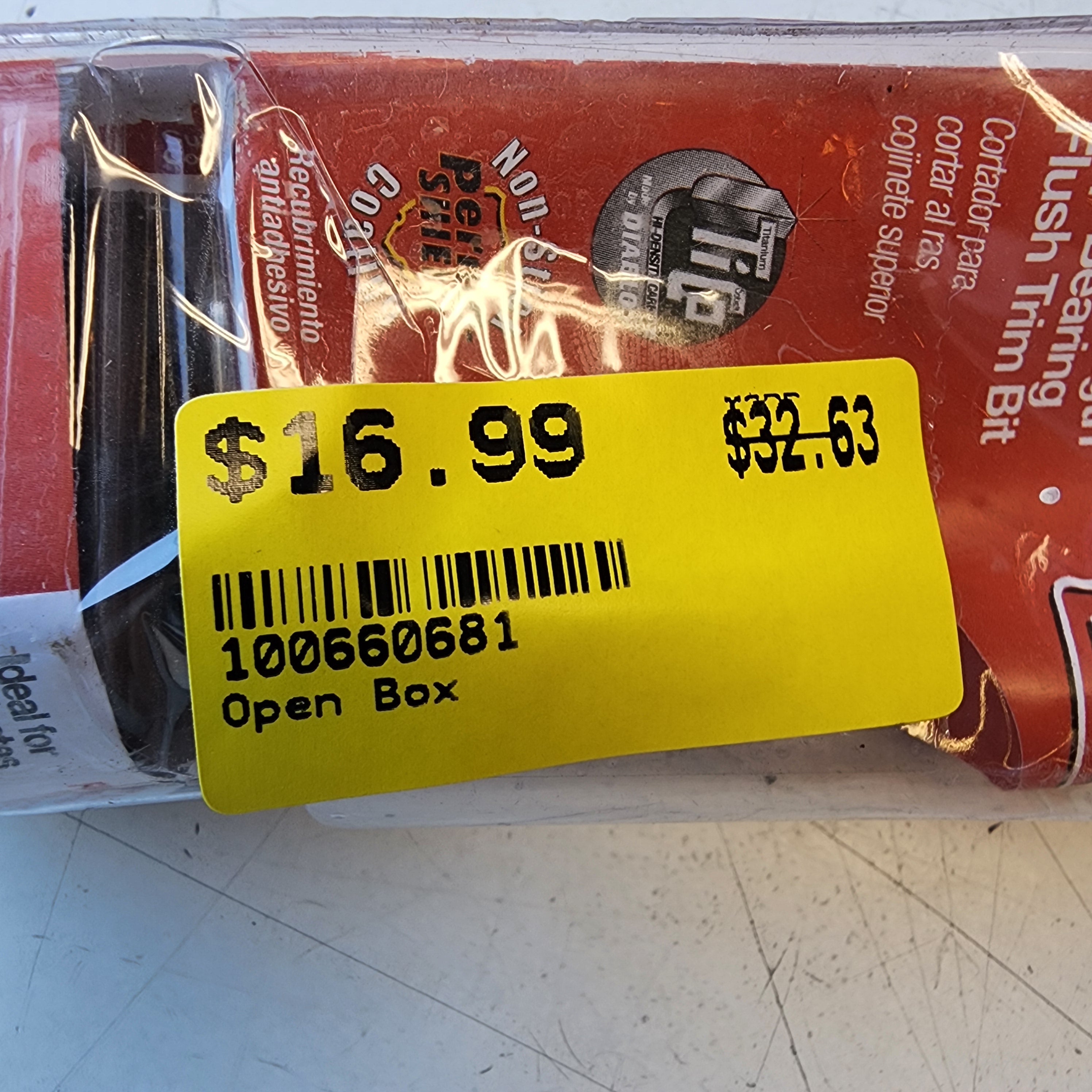

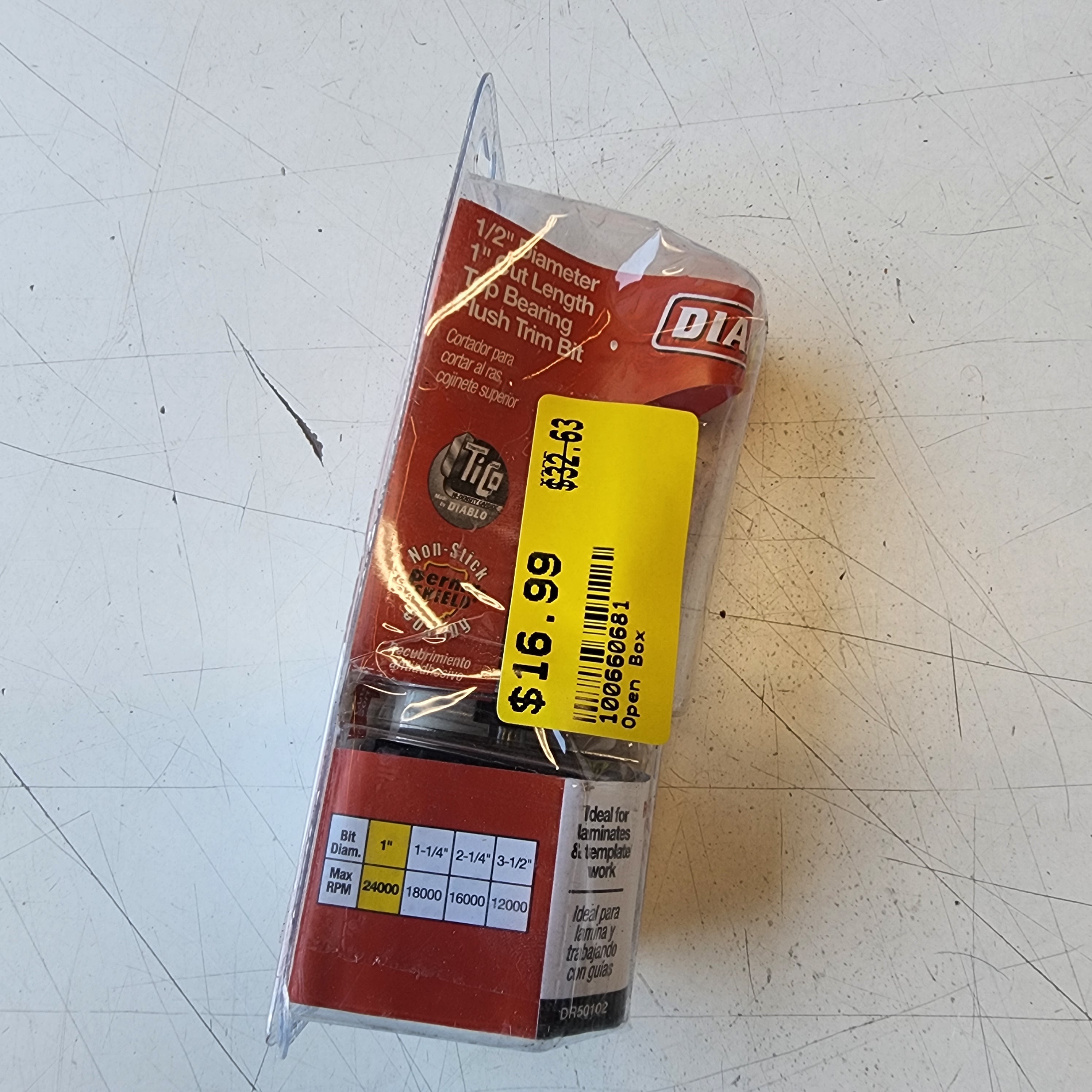

- Condition: Open Box
Specifications
| Specification | Value |
|---|---|
| Brand | DIABLO |
| Model Number | DR50102 |
| Internet Number | 100660681 |
| Store SO SKU | 315129 |
| Product Type | Top-Bearing Flush Trim Router Bit |
| Condition | Open Box |
| Cutting Diameter | 1/2 in. |
| Carbide Height / Cutting Depth | 1 in. |
| Bearing Diameter | 1/2 in. |
| Bearing Position | Top / Upper Bearing |
| Shank Diameter | 1/4 in. |
| Overall Length | 2-1/2 in. |
| Cutting Material | TiCo™ Hi-Density Carbide |
| Brazing | Tri-Metal Brazing |
| Router Compatibility | Compatible CNC, Hand-Held, and Table-Mounted Routers |
| Minimum Collet / Chuck Size | 1/4 in. |
| Recommended Materials | Wood, Plywood, Melamine, MDF, Laminates, and Compatible Wood-Based Materials |
| Recommended Applications | Flush Trimming, Template Routing, Pattern Duplication, Laminate Trimming, Cabinetry, and Furniture Work |
| Package Quantity | 1 Piece |
Ideal For
Ideal for cabinetmakers, furniture builders, woodworkers, finish carpenters, contractors, and DIY users performing template routing, pattern duplication, laminate trimming, and flush-trimming work.
Important Note
Open-box condition. Packaging may show signs of opening, handling, or storage. Router is not included. Confirm compatibility with a 1/4 in. router collet before installation. Inspect the carbide cutting edges, top bearing, and shank before use, and confirm the bearing rotates freely without binding or excessive play.
