What is the Diablo DR80102 router bit used for?
The Diablo DR80102 creates a traditional decorative bead along edges in wood and compatible wood-based materials.

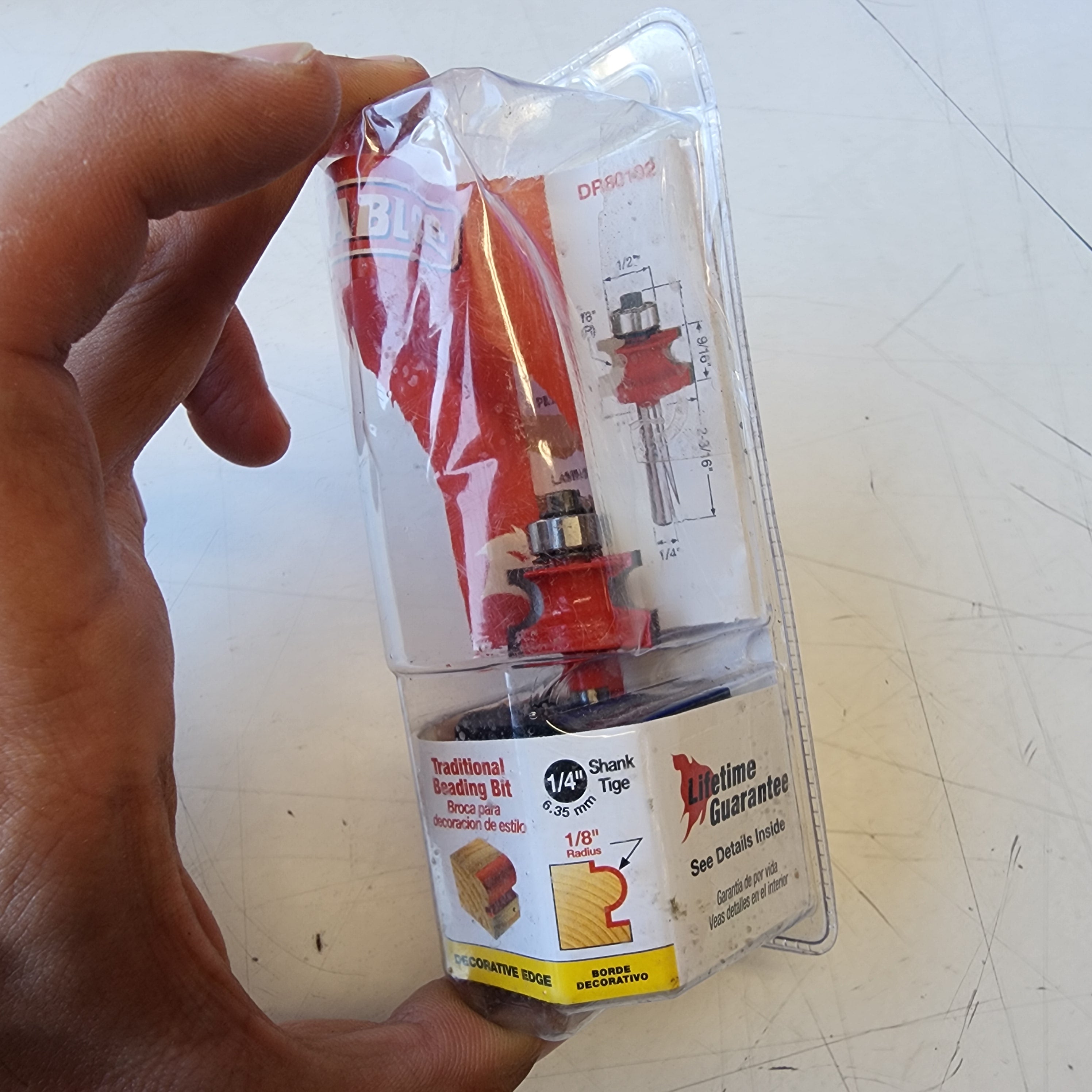

DIABLO DR80102 1 in. Traditional Bead Router Bit for Woodworking
Value Tools Certified Inspection
Bench Verified
Top-brand power tools, accessories, and hardware at up to 55% off retail.
Pickup available at Value Tools Co - Elk Grove
Usually ready in 1 hour
🛡️
30-DAY PEACE OF MIND GUARANTEE
Tested & inspected products • 30-day returns by mail or in-store • Free return shipping on defective items
DIABLO DR80102 1 in. Traditional Bead Router Bit for Woodworking
Model Number: DR80102
DIABLO DR80102 1 in. Traditional Bead Router Bit for Woodworking
Product Overview
The Diablo DR80102 1 in. Traditional Bead Router Bit creates a decorative beaded edge in wood and compatible wood-based materials. It has a 1/4 in. shank for routers with a matching collet and can be used with handheld or table-mounted routers. TiCo high-density carbide cutters, a Perma-SHIELD coating, and a kickback-reducing design support controlled routing and finished edges. Check your router’s collet size and speed limits before use.
Specifications
| Brand | Diablo |
| Model | DR80102 |
| Product Type | Traditional bead router bit |
| Overall Diameter | 1 in. |
| Shank Diameter | 1/4 in. |
| Bearing Diameter | 1/2 in. |
| Bead Radius | 1/8 in. |
| Number of Cutters | 2 |
| Overall Length | 2-3/16 in. |
| Maximum Speed | 24,000 RPM |
| Store SKU | 100660644 |
Key Features
- Traditional bead profile adds a decorative edge to woodworking projects.
- TiCo high-density carbide cutters are designed for cutting performance and durability.
- Perma-SHIELD coating helps resist heat, gumming, and corrosion.
- Kickback-reducing design supports controlled routing.
- Tri-metal brazing helps secure the carbide cutters to the bit body.
- 1/4 in. shank fits compatible routers with a matching collet.
Applications
Designed for decorative edge routing in hardwood, softwood, plywood, laminates, MDF, and other suitable composite materials. Suitable for use with compatible handheld or table-mounted routers. Follow the router manufacturer’s instructions for bit installation, speed, and safe operation.
Compatibility
Use with a router that accepts a 1/4 in. shank and is rated for the bit’s maximum speed. Confirm collet fit and router speed before operation.
Included Components
- One Diablo DR80102 1 in. Traditional Bead Router Bit
Important Product Information
This product variant has been tested and is working properly. Review the selected product variant details and photos for its specific condition and included components.
This product variant is the Diablo DR80102 1 in. Traditional Bead Router Bit.
Frequently Asked Questions
Quick answers to common questions about this product.
What shank size does the DR80102 have?
The DR80102 has a 1/4 in. shank. Use it only with a router collet that matches this size.
Which materials can this bead bit cut?
It is designed for suitable materials such as hardwood, softwood, plywood, laminates, and MDF.
Can the Diablo DR80102 be used in a table-mounted router?
Yes. It can be used with compatible handheld or table-mounted routers that accept a 1/4 in. shank and meet the bit’s speed requirements.
Has this product variant been tested?
Yes. This product variant has been tested and is working properly.
